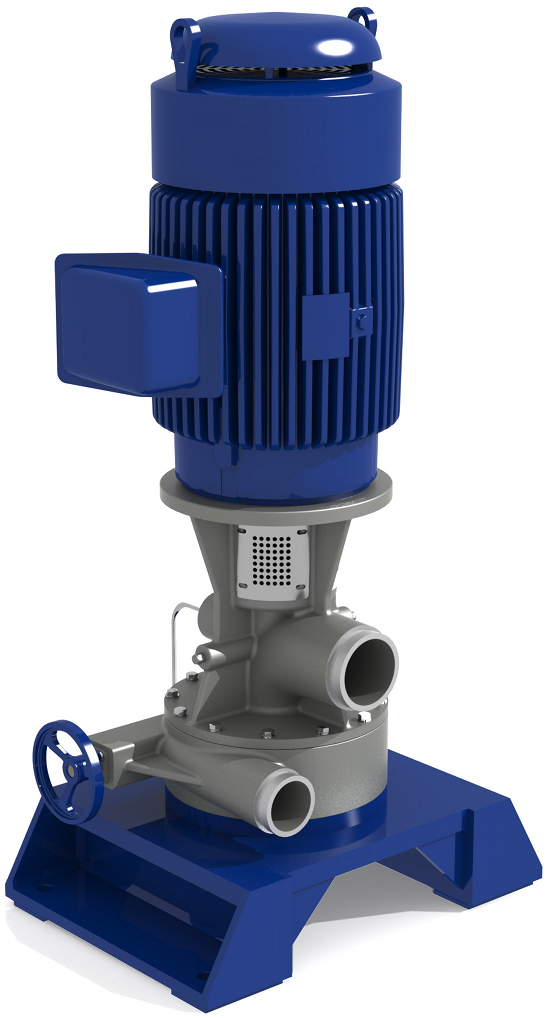

LPD
The LPD turbine generator ERD uses brine hydraulic energy to drive its generator, producing electrical energy. Integrated into the unit is a suitable generator (generally an induction generator) VFD that regulates the LPD. As a result, control of the brine flow and pressure is achieved as requried for the desired membrane operating conditions - the maximum amount of electricity available from the brine stream is extracted. |
|

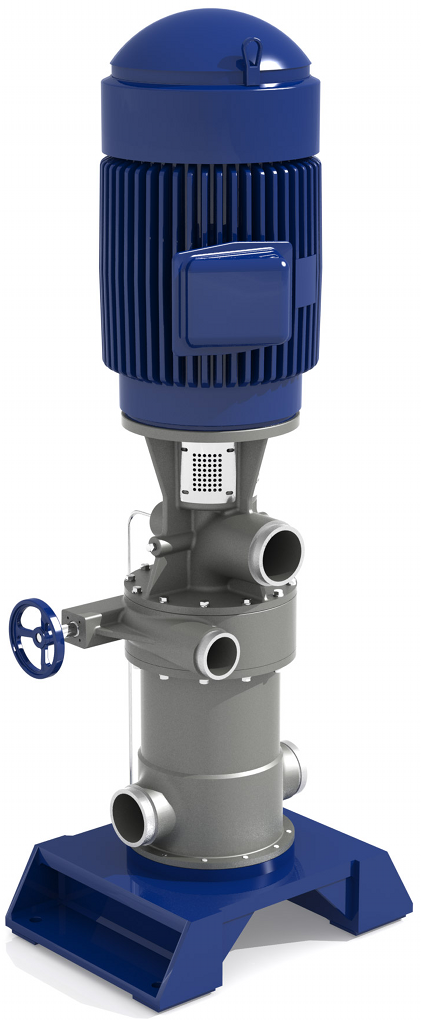

LP-HEMI
The LPH is revolutionizing pumping and energy recovery in brackish water reverse osmosis (BWRO.) The LPH's rapid acceptance is driven by simple economics - an ERD is only worth using if the cost of saved energy can offset the capital costs and installation costs of the ERD (a quick return on investment / ROI.)
The unique modular construction of the LP product line allows components to be configured in dozens of ways, to achieving the performance requirements of a whole range of BWRO systems, without high capital and installation costs. |
|

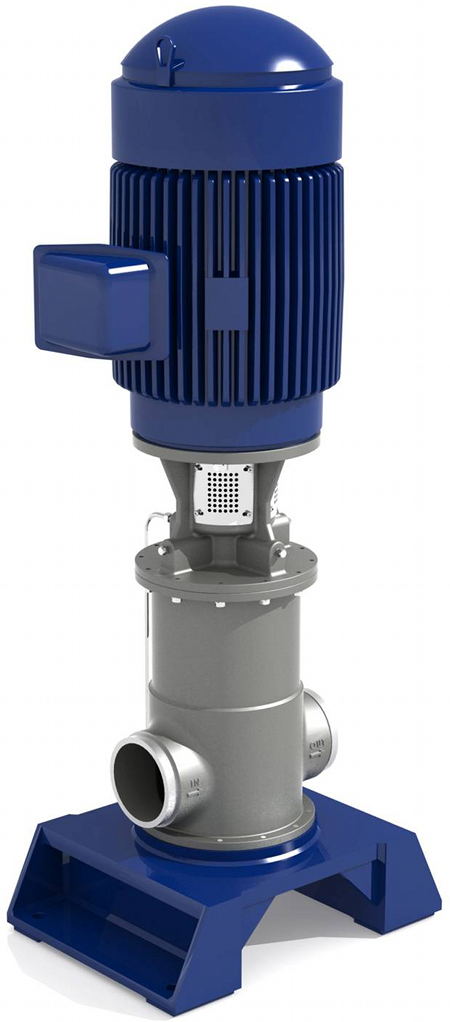

LPS Pump
With efficiencies up to 80%, flows up to 750 m3/hr, and pressures up to 35 bar, the LPS is the ideal pump for a wide range of BWRO applications. 316 SS construction overcomes the most demanding corrosion requirements.
The LPS' vertical configuration and low weight virtually eliminate foundation requirements. Shaft alignment is assured by highly accurate machine fits of the components.
|
|
MSB multi-stage centrifugal reverse osmosis feed pump
The MSB series multi-stage centrifugal low-pressure feed pumps provide a new level of reliability and efficiency in brackish RO pumps. The MSB is a general purpose pump for low to medium pressure RO. The MSB series applications include usage as a low pressure feed, product transfer, interstage booster, or as a mechanical pump. |
|
|
|
